Party-Boy Luxus 202

Party-Boy Luxus 202; Grundig Radio- (ID = 77429) Radio

Party-Boy Luxus 202; Grundig Radio- (ID = 77430) Radio
Party-Boy Luxus 202; Grundig Radio- (ID = 77428) Radio Party-Boy Luxus 202; Grundig Radio- (ID = 604443) Radio
Party-Boy Luxus 202; Grundig Radio- (ID = 604446) Radio Party-Boy Luxus 202; Grundig Radio- (ID = 604441) Radio

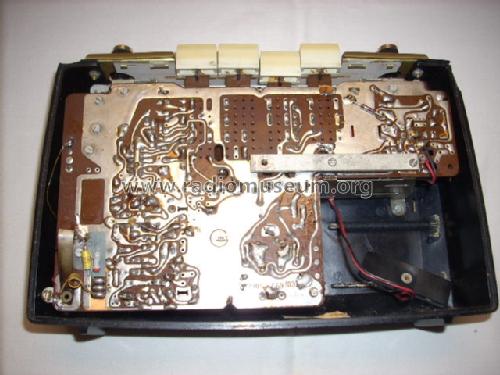

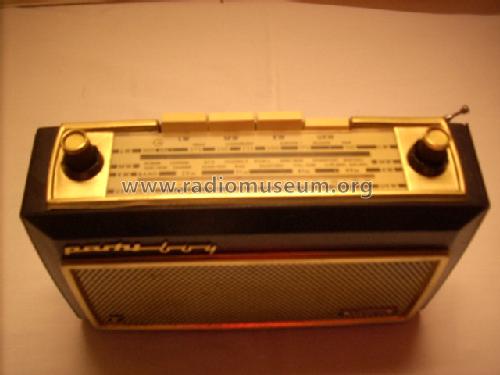

Party-Boy Luxus 202; Grundig Radio- (ID = 604442) Radio Party-Boy Luxus 202; Grundig Radio- (ID = 604444) Radio
Party-Boy Luxus 202; Grundig Radio- (ID = 604445) Radio Party-Boy Luxus 202; Grundig Radio- (ID = 1312084) Radio
Use red slider bar for more.
Party-Boy Luxus 202; Grundig Radio- (ID = 77428) Radio
Grundig Radio-: Party-Boy Luxus 202 [Radio] ID = 77428 320x349
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party-Boy Luxus 202, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Aus Bedienungsanleitung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF124 AF125 AF126 AF126 AF126 OC75 OC75 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: Party-Boy Luxus 202 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 170 x 80 mm / 10.2 x 6.7 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 249.00 DM
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
