Phono-Kombination RF102Ph

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1966–1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26485
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

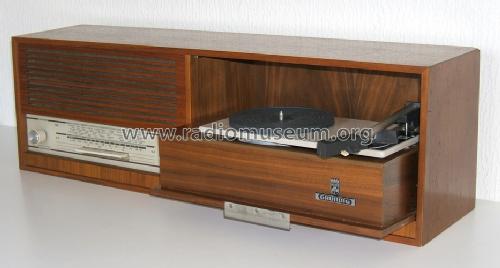

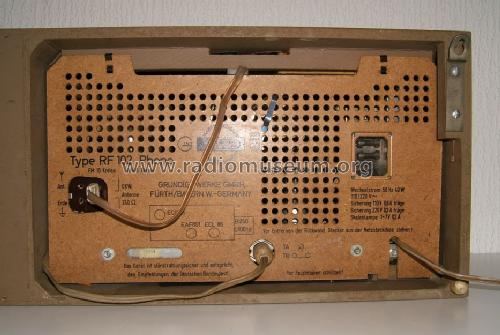

  • Model: Phono-Kombination RF102Ph - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 740 x 240 x 180 mm / 29.1 x 9.4 x 7.1 inch
  • Notes
  • Rundfunk-Chassis = RF100;
    Phono-Chassis = Perpetuum-Ebner PE35. The design of this radio was the responsibility of RM member and frequent contributer Hans Knoll, in 1965.

    Edelholzgehäuse Nußbaum natur mattiert oder Teak natur.

  • Net weight (2.2 lb = 1 kg)
  • 9.1 kg / 20 lb 0.7 oz (20.044 lb)
  • Price in first year of sale
  • 375.00 DM
  • External source of data
  • erb
  • Literature/Schematics (1)
  • -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 13)
  • Literature/Schematics (2)
  • -- Original-techn. papers.
