• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1979 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 221917

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

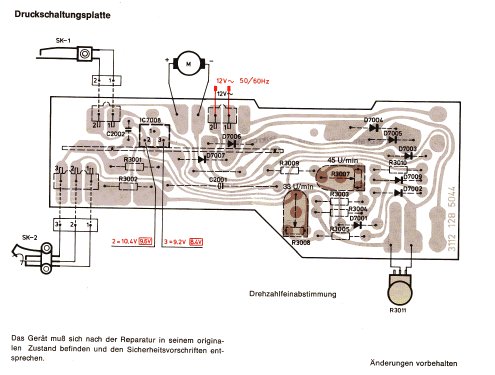

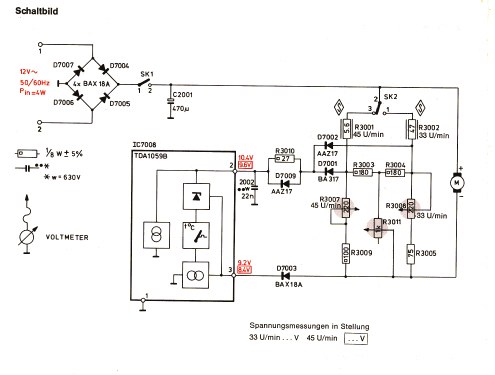

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

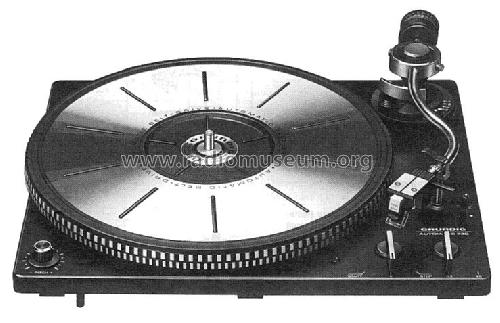

• Model: Plattenspieler Automatik 730 - Grundig Radio-Vertrieb, RVF,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 330 x 0 x 275 mm / 13 x 0 x 10.8 inch

• Notes
• Gleichstrommotor, Riemenantrieb, Drehzahlen 33 1/3 und 45 U/min, Tonabnehmer Super M 400, Abtastnadel Diamant konisch.

• Mentioned in
• Grundig Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
