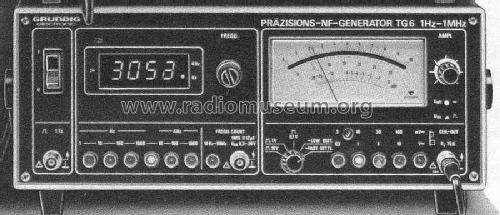

Präzisions NF-Generator TG6

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1979 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 128516
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

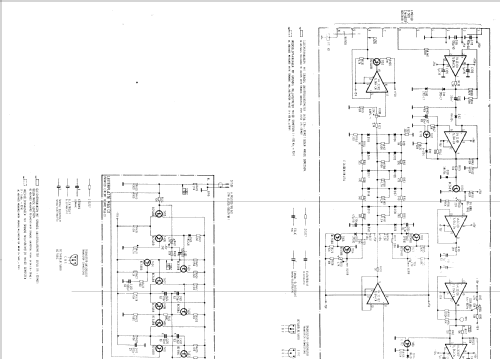

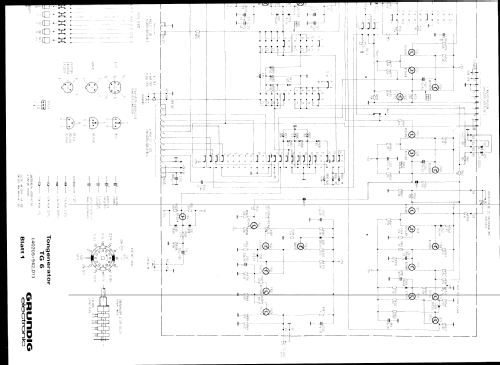

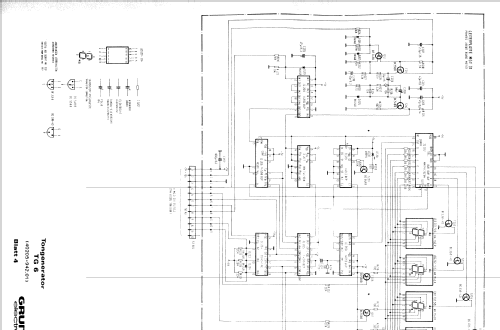

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Präzisions NF-Generator TG6 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 350 x 155 x 280 mm / 13.8 x 6.1 x 11 inch
  • Notes
  • Frequenzzähler 10 Hz ... 1 MHz; Generator für Sinus oder Rechteck 1 Hz bis 1 MHz in 6 dekadischen Teilbereichen, Digitalanzeige für Frequenz, analoge Anzeige für Pegel.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 2,165.00 DM
  • Literature/Schematics (1)

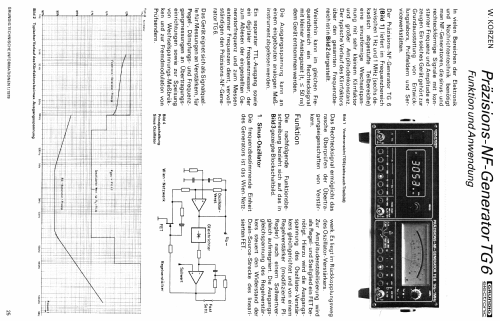

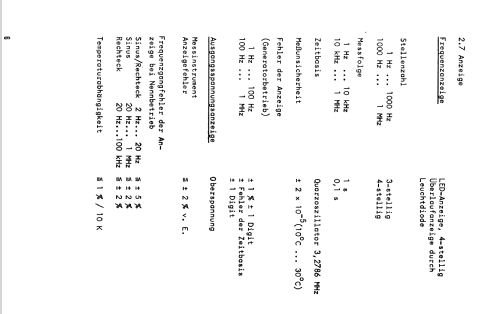

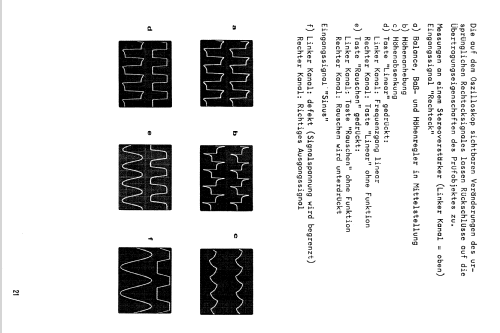

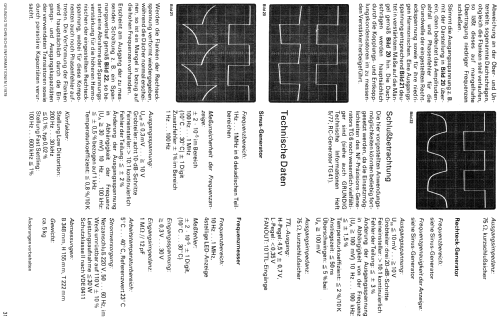

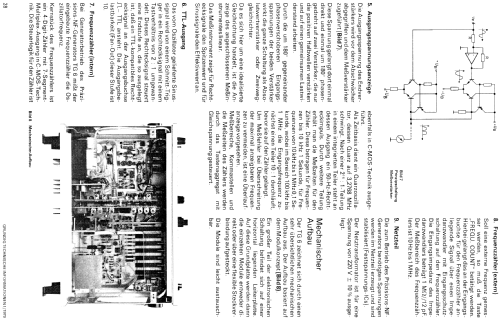

  • - - Manufacturers Literature (Grundig Technische Informationen 1/1979)
  • Literature/Schematics (2)
  • -- Original prospect or advert (Grundig Electronic Flyer 12/1980)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
