• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95511

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 230 & 1,5 Volt

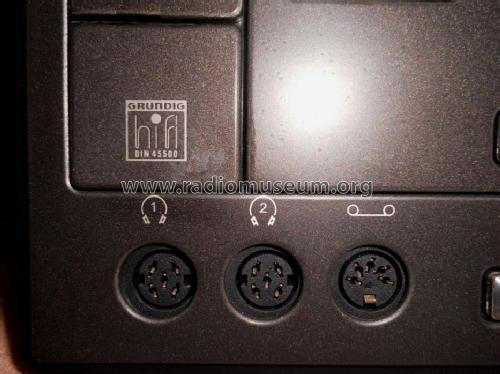

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: PreCeiver X 6500 TP - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 540 x 159 x 330 mm / 21.3 x 6.3 x 13 inch

• Notes

• Sämtliche Anzeigen über LCD und LED; je 10 Speicherplätze für LW, MW und UKW, zusätzlich 1,5-V-Batterie für Sendespeicher; benötigt Aktivboxen, NF-Ausgang 1 V/200 Ohm; Ultraschall fernbedienbar.

  Gerät technisch identisch mit HiFi-Studio XPC 6500TP, jedoch ohne Plattenspieler und Cassettenrecorder.

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
