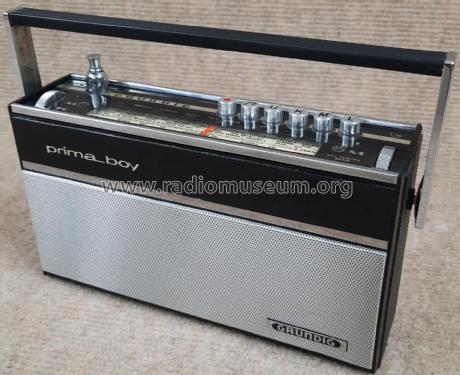

Prima-Boy 209

Prima-Boy 209; Grundig Radio- (ID = 154050) Radio

Prima-Boy 209; Grundig Radio- (ID = 154824) Radio

Prima-Boy 209; Grundig Radio- (ID = 154825) Radio

Prima-Boy 209; Grundig Radio- (ID = 154822) Radio

Prima-Boy 209; Grundig Radio- (ID = 154823) Radio

Prima-Boy 209; Grundig Radio- (ID = 154827) Radio

Prima-Boy 209; Grundig Radio- (ID = 740012) Radio
Prima-Boy 209; Grundig Radio- (ID = 2115341) Radio Prima-Boy 209; Grundig Radio- (ID = 2115342) Radio
Prima-Boy 209; Grundig Radio- (ID = 2115345) Radio Prima-Boy 209; Grundig Radio- (ID = 64739) Radio
Prima-Boy 209; Grundig Radio- (ID = 418781) Radio Prima-Boy 209; Grundig Radio- (ID = 418782) Radio
Prima-Boy 209; Grundig Radio- (ID = 418783) Radio Prima-Boy 209; Grundig Radio- (ID = 418784) Radio
Use red slider bar for more.
Prima-Boy 209; Grundig Radio- (ID = 2115341) Radio
Grundig Radio-: Prima-Boy 209 [Radio] ID = 2115341 1400x902
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prima-Boy 209, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Antenne abgebrochen

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF255 BF241 BF241 BF241 BF241 BF240 BC108 BC181 AC187 AC188
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Prima-Boy 209 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 110 x 60 mm / 7.9 x 4.3 x 2.4 inch
Notes Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
