Prisma 300

Prisma 300; Grundig Radio- (ID = 2091782) Television

Prisma 300; Grundig Radio- (ID = 2091783) Television

Prisma 300; Grundig Radio- (ID = 2091784) Television

Prisma 300; Grundig Radio- (ID = 2091785) Television

Prisma 300; Grundig Radio- (ID = 2091786) Television

Prisma 300; Grundig Radio- (ID = 2091787) Television

Prisma 300; Grundig Radio- (ID = 2091788) Television

Prisma 300; Grundig Radio- (ID = 2091789) Television

Prisma 300; Grundig Radio- (ID = 2091790) Television
Prisma 300; Grundig Radio- (ID = 2091791) Television
Use red slider bar for more.
Prisma 300; Grundig Radio- (ID = 2091791) Television
Grundig Radio-: Prisma 300 [Television] ID = 2091791 705x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prisma 300, Grundig (Radio-Vertrieb, RVF, Radiowerke):

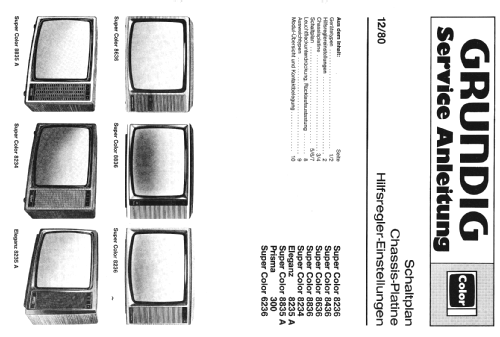

Bild aus Grundig Service Unterlagen

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980/1981 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A66-540X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage; ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Prisma 300 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Farbfernsehgerät Grundig Prisma 300
Kabel Tuner und Sendersuchlauf, ähnlich wie Eleganz 8235A.

Literature/Schematics (2) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
