Programmable Automatic RLC Meter (RLC Meßbrücke) RLC200

Programmable Automatic RLC Meter RLC200; Grundig Radio- (ID = 1721013) Equipment Programmable Automatic RLC Meter RLC200; Grundig Radio- (ID = 1721014) Equipment
Use red slider bar for more.
Programmable Automatic RLC Meter RLC200; Grundig Radio- (ID = 1721013) Equipment
Grundig Radio-: Programmable Automatic RLC Meter RLC200 [Equipment] ID = 1721013 933x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Programmable Automatic RLC Meter (RLC Meßbrücke) RLC200, Grundig (Radio-Vertrieb, RVF, Radiowerke):

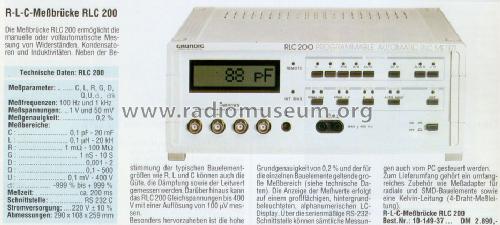

ELV Katalog 1995

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1995 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Programmable Automatic RLC Meter RLC200 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 290 x 108 x 259 mm / 11.4 x 4.3 x 10.2 inch
Notes

Über die serienmäßige RS-232-C Schnittstelle können sämtliche Messungen auch vom PC gesteuert werden.

Mentioned in ELV Katalog 1995

Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
