Prüfsignalgeber GK 2

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1971 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 2:
Wave bands - without
Details
Power type and voltage Dry Batteries / AA: 1 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Prüfsignalgeber GK 2 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 120 x 19 x 19 mm / 4.7 x 0.7 x 0.7 inch
Notes

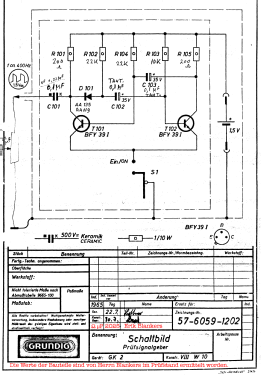

Signalinjektor in Form eines Griffels. Der eingebaute Multivibrator liefert ein Rechtecksignal von etwa 400 Hz und 1,5 Vss. Zubehör zum Signalverfolger SV 2.

Mentioned in -- Original prospect or advert (GR 164/46640/71)

Model page created by a member from D. See "Data change" for further contributors.
