PS3500

PS3500; Grundig Radio- (ID = 513343) R-Player
PS3500; Grundig Radio- (ID = 645371) R-Player PS3500; Grundig Radio- (ID = 381234) R-Player
PS3500; Grundig Radio- (ID = 381235) R-Player PS3500; Grundig Radio- (ID = 513306) R-Player
PS3500; Grundig Radio- (ID = 513307) R-Player PS3500; Grundig Radio- (ID = 513308) R-Player
PS3500; Grundig Radio- (ID = 513309) R-Player PS3500; Grundig Radio- (ID = 513310) R-Player
PS3500; Grundig Radio- (ID = 513311) R-Player PS3500; Grundig Radio- (ID = 513312) R-Player
Use red slider bar for more.
PS3500; Grundig Radio- (ID = 645371) R-Player
Grundig Radio-: PS3500 [R-Player] ID = 645371 900x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model PS3500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 2:
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220; 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PS3500 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 135 x 360 mm / 17.7 x 5.3 x 14.2 inch

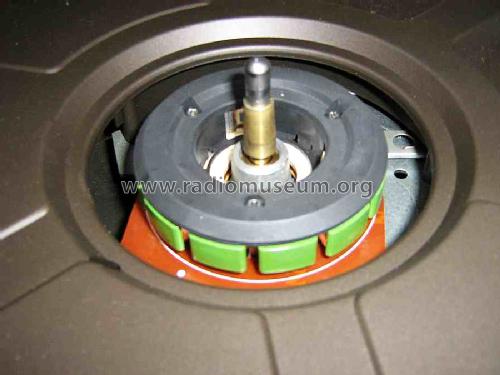

Notes Direktantrieb, 33/45 UpM, Pitch-Control, Automatic. Magnetischer Tonabnehmer AT-71 oder AT 12X E, Nadel ATN-71.
Net weight (2.2 lb = 1 kg) 6.7 kg / 14 lb 12.1 oz (14.758 lb)
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6061 models, 5286 with images and 4091 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
