PS8000

PS8000; Grundig Radio- (ID = 757193) R-Player

PS8000; Grundig Radio- (ID = 757194) R-Player

PS8000; Grundig Radio- (ID = 757195) R-Player

PS8000; Grundig Radio- (ID = 757196) R-Player
PS8000; Grundig Radio- (ID = 757192) R-Player PS8000; Grundig Radio- (ID = 757097) R-Player
Use red slider bar for more.
PS8000; Grundig Radio- (ID = 757192) R-Player
Grundig Radio-: PS8000 [R-Player] ID = 757192 933x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model PS8000, Grundig (Radio-Vertrieb, RVF, Radiowerke):

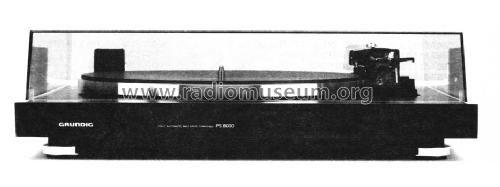

Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1989 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Powered by external power supply or a main unit. / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PS8000 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 435 x 119 x 375 mm / 17.1 x 4.7 x 14.8 inch
Notes 2-speed, belt driven turntable system with DC motor, electronic speed control and integrated aluminium tonearm.
Platter: 304mm.
Cartridge: ULM 65E; Stylus: DN 165E.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
