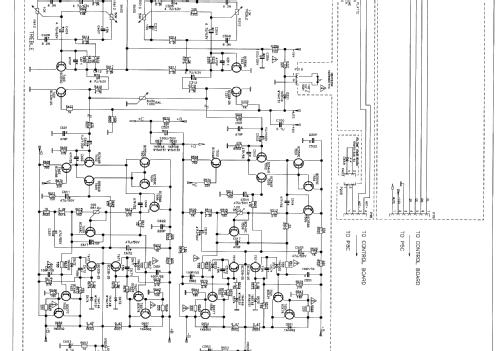

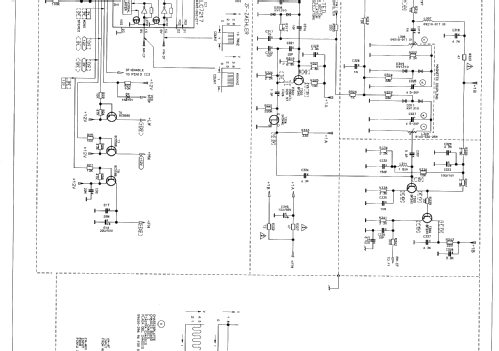

Select picture or schematic to display from thumbnails on the right and click for download.
For model Quartz Lock Synthesizer Receiver R301, Grundig (Radio-Vertrieb, RVF, Radiowerke):
aus Grundig Kata´log 1992

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1992 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (110 W max.)
from Radiomuseum.org Model: Quartz Lock Synthesizer Receiver R301 - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 345 x 125 x 330 mm / 13.6 x 4.9 x 13 inch
Notes

Grundig R301:
30 Stationstasten, PLL Digitaltuner, UKW, MW und LW, Fernbedienung RC 2, 2 x 30 Watt Sinus / 2 x 55 Musik an 8 Ohm, Kopfhöreranschluß, 75 Ohm Koax Anschluß für UKW Fern und Nah (Kabel), AM Antenne, 4 Eingäne: Phono magnet, CD, Tape (mit Aufnahmeausgang) und Video (mit Aufnahmeausgang), 2 geschaltete Netzausgänge/Steckdosen, 2 RC Bus Anschlüsse, Loudness Taste.
Übertragungsbereich Phono MM: 20 - 40000 Hz, andere Eingänge: 8 - 45000 Hz, Leistungsaufnahme maximal 170 Watt.

Source of data -- Original prospect or advert

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
