R500; Grundig Radio- (ID = 276874) Radio
Grundig Radio-: R500 [Radio] ID = 276874 900x395

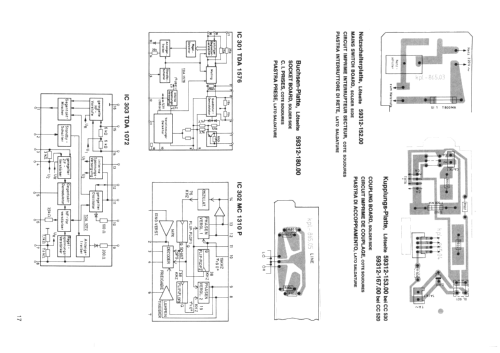

Select picture or schematic to display from thumbnails on the right and click for download.
For model R500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1982/1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 10700/450 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (undistorted)
from Radiomuseum.org Model: R500 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 115 x 270 mm / 17.7 x 4.5 x 10.6 inch
Notes Nur digitale Frequenzanzeige. Senderspeicher über eingebaute Knopfzelle. Eingänge: Phono und Tape. 2 LS-Buchsen
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 598.00 DM
Source of data Taxliste Franzis Verlag

Model page created by Peter Böhm. See "Data change" for further contributors.
