Radio Cassette Recorder with Compact Disc Player RR 700CD

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Daten

Forum

Bilder

Sammlungen

Land
Deutschland / Germany

Hersteller / Marke
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Jahr
1995

Kategorie
Rundfunkempfänger (Radio - oder Tuner nach WW2)

Radiomuseum.org ID
282867

- anderer Name: Grundig Portugal || Grundig USA / Lextronix

Bilder
Schaltpläne

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845726) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845727) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845728) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845729) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845730) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845731) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845732) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845733) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845734) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845735) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845736) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845737) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845738) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845739) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845740) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845741) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845742) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845743) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845744) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845745) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845746) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845747) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845748) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845750) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845751) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845752) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845753) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845754) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845755) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2845756) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (3)

Radio Cassette Recorder with Compact Disc Player RR 700CD; Grundig Radio- (ID = 2005412) Radio — Grundig Radio- Radio Cassette Recorder with Compact Disc Player RR 700CD (2)

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

Technische Daten

Anzahl Transistoren
Halbleiter vorhanden.

Halbleiter

Hauptprinzip
PLL, Phase-locked loop (Phasenregelschleife); ZF/IF 455/10700 kHz

Wellenbereiche
Langwelle, Mittelwelle und UKW (FM).

Spezialitäten
Andere Kombin. siehe Bemerkungen

Betriebsart / Volt
Netz- / Batteriespeisung / 230 / D: 8 x 1,5 + AA: 2 x 1,5 Volt

Lautsprecher
4 Lautsprecher

Belastbarkeit / Leistung
5.8 W (8 W max./spitze)

Material
Plastikgehäuse (nicht Bakelit), Thermoplast

Die GFGF Zeitschrift Funkgeschichte bringt interessante Artikel zu Radios, Funkwesen und Medien. Bei Radiomuseum.org finden Sie die vollständigen Hefte früherer Ausgaben als PDF zum Download.

von Radiomuseum.org
Modell: Radio Cassette Recorder with Compact Disc Player RR 700CD - Grundig Radio-Vertrieb, RVF,

Form
Reisegerät > 20 cm (netzunabhängig betreibbar)

Abmessungen (BHT)
495 x 195 x 203 mm / 19.5 x 7.7 x 8 inch

Bemerkung
UKW-Stereo, MW, LW, 25 Stationsspeicher, Stereosignal/Abstimmanzeige. Cassettenteil mit High Speed Dubbing, OneTouch Recording, Bandendabschaltung, Continousplay. CD-Teil 16 bit/ 2-fach Oversampling, 20 Speicherplätze, CD-Synchro, Random-Play, Intro-Scan, LC-Display, Sourround-Sound, 4 Lautsprecher, autom. Loudness, Stereo-Mikrofon, Line out, integriertes Netzteil.

Nettogewicht
4 kg / 8 lb 13 oz (8.811 lb)

Literaturnachweis
-- Original prospect or advert

Literatur/Schema (1)

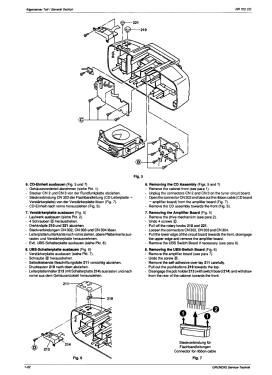

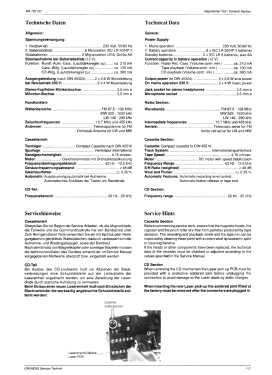

-- Original-techn. papers. (Grundig Service Manual 72010-739-60)

Autor
Modellseite von Roland Müller angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
