Radio Recorder 235 mono RR235

Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531370) Radio Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531371) Radio
Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531372) Radio Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531374) Radio
Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531376) Radio
Use red slider bar for more.
Radio Recorder 235 mono RR235; Grundig Radio- (ID = 2531370) Radio
Grundig Radio-: Radio Recorder 235 mono RR235 [Radio] ID = 2531370 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Recorder 235 mono RR235, Grundig (Radio-Vertrieb, RVF, Radiowerke):

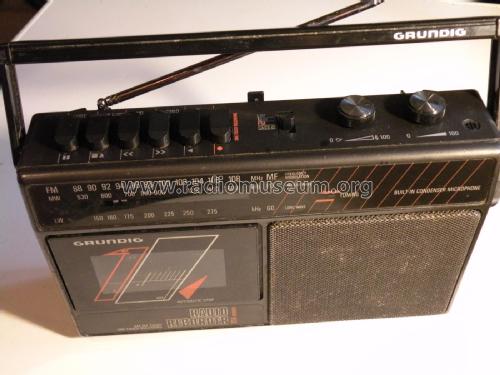

D_Grundig_type RR 235_vue de face_coll. William FAGUE

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1987 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radio Recorder 235 mono RR235 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 165 x 80 mm / 10.6 x 6.5 x 3.1 inch
Notes

Grundig Radio-Recorder 235 mono, UKW/MW/LW-Empfangsteil, Cassetten-Recorder mit Autostop am Bandende. Eingebautes Kondensator-Mikrofon (Electret).


Récepteur radio avec enregistreur cassette avec arrêt automatique.

Made in Korea

Net weight (2.2 lb = 1 kg) 1.450 kg / 3 lb 3.1 oz (3.194 lb)

Model page created by William Fague. See "Data change" for further contributors.
