Radio Recorder RR256

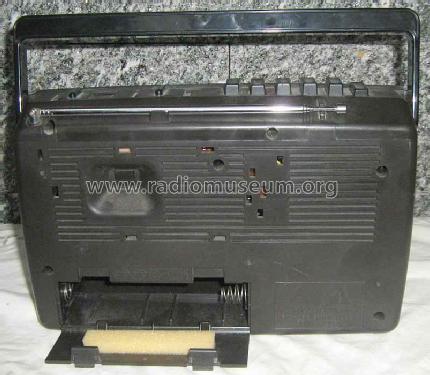

Radio Recorder RR256; Grundig Radio- (ID = 1579481) Radio Radio Recorder RR256; Grundig Radio- (ID = 1579476) Radio
Radio Recorder RR256; Grundig Radio- (ID = 1579477) Radio Radio Recorder RR256; Grundig Radio- (ID = 1579478) Radio
Radio Recorder RR256; Grundig Radio- (ID = 1579479) Radio Radio Recorder RR256; Grundig Radio- (ID = 1579480) Radio
Radio Recorder RR256; Grundig Radio- (ID = 1579482) Radio
Use red slider bar for more.
Radio Recorder RR256; Grundig Radio- (ID = 1579481) Radio
Grundig Radio-: Radio Recorder RR256 [Radio] ID = 1579481 732x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Recorder RR256, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sammlung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radio Recorder RR256 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 180 x 80 mm / 11 x 7.1 x 3.1 inch
Notes

Radiorecorder RR256, analoge Skala, von 88 bis 108 MHz, Condenser Microphone, Automatic Frequency Control, Teleskopantenne.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
