Radiorecorder RR 460

Radiorecorder RR 460; Grundig Radio- (ID = 1961421) Radio Radiorecorder RR 460; Grundig Radio- (ID = 1961423) Radio
Radiorecorder RR 460; Grundig Radio- (ID = 1961424) Radio Radiorecorder RR 460; Grundig Radio- (ID = 1961427) Radio
Radiorecorder RR 460; Grundig Radio- (ID = 1961429) Radio Radiorecorder RR 460; Grundig Radio- (ID = 1961430) Radio
Use red slider bar for more.
Radiorecorder RR 460; Grundig Radio- (ID = 1961421) Radio
Grundig Radio-: Radiorecorder RR 460 [Radio] ID = 1961421 1400x871
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiorecorder RR 460, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player

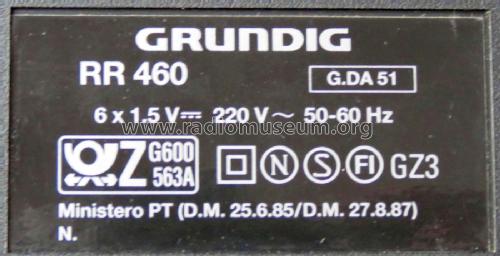

Power type and voltage Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radiorecorder RR 460 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 450 x 200 x 125 mm / 17.7 x 7.9 x 4.9 inch
Notes

Zur Aufnahme  braucht nur der Knopf mit der Bezeichnung " OTR " gedrückt zu werden. OTR ist die Abkürzung für One Touch Recording.

Net weight (2.2 lb = 1 kg) 2.375 kg / 5 lb 3.7 oz (5.231 lb)

Model page created by Ottmar Lauth. See "Data change" for further contributors.
