For model RC-Generator TG5A, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1978 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RC-Generator TG5A - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.

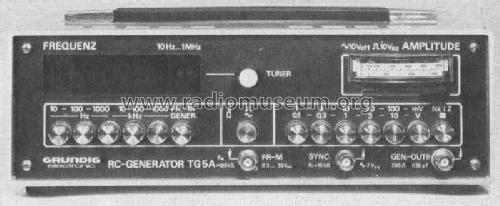

Notes Grundig Sinus-Rechteck-Generator TG5A.
Frequenzbereich 1 Hz bis 1 MHz, vierstellige Digitalanzeige durch Siebensegment-Planar-Ziffernröhren, Fremdmodulationseingang, Ausgangsspannung 1 mV bis 10 V in 10-dB-Schritten veränderbar, Feineinstellung für Zwischenwerte.
Mentioned in Funkschau (8.1978)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
