Regel-Trenn-Transformator RT5A 9.06066-1506

Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 205633) Equipment

Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 2067575) Equipment

Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 2067576) Equipment

Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 2067577) Equipment
Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 126494) Equipment Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 126496) Equipment
Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 458674) Equipment Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 1156710) Equipment
Use red slider bar for more.

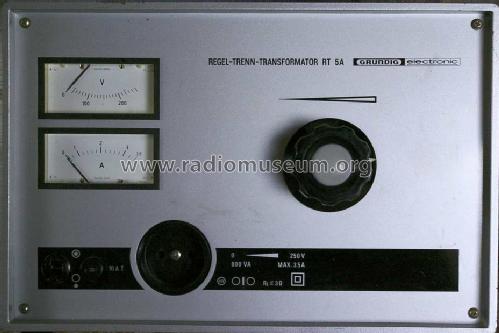

Regel-Trenn-Transformator RT5A; Grundig Radio- (ID = 126494) Equipment
Grundig Radio-: Regel-Trenn-Transformator RT5A [Equipment] ID = 126494 930x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regel-Trenn-Transformator RT5A 9.06066-1506, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ältere Version ohne Einschaltstrombegrenzung, Baujahr 1975

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Regel-Trenn-Transformator RT5A [9.06066-1506] - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 210 x 190 mm / 11.8 x 8.3 x 7.5 inch
Notes

Ausgangsleistung bis 850 Watt. 2 Dreheisenmeßwerke für Strom (0 - 3,5 A) und Spannung (50 V - 250 V). Ohne Einschaltstromverzögerung

Die einstellbare Ausgangsspannung von 0...250V steht an einer nicht mit dem Schutzleiter verbundenen Spezialsteckdose (für alle gebräuchlichen Stecker passend) zur Verfügung.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 550.00 DM

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
