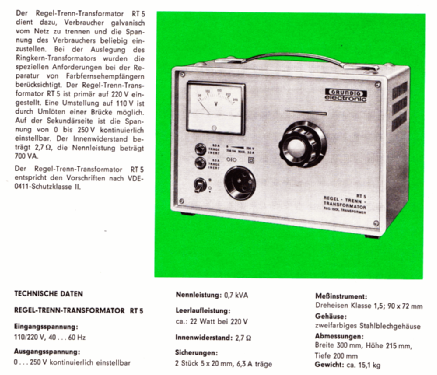

Regel-Trenn-Transformator RT5

Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 284725) Equipment

Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 284726) Equipment

Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 2039430) Equipment

Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 2071087) Equipment

Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 2366756) Equipment
Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 125883) Equipment Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 2071088) Equipment
Use red slider bar for more.
Regel-Trenn-Transformator RT5; Grundig Radio- (ID = 125883) Equipment
Grundig Radio-: Regel-Trenn-Transformator RT5 [Equipment] ID = 125883 933x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regel-Trenn-Transformator RT5, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962–1966 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Regel-Trenn-Transformator RT5 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 215 x 200 mm / 11.8 x 8.5 x 7.9 inch
Notes Ausgangsleistung bis 750 VA, max 3,2 A.
Net weight (2.2 lb = 1 kg) 15.1 kg / 33 lb 4.2 oz (33.26 lb)
Price in first year of sale 480.00 DM

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
