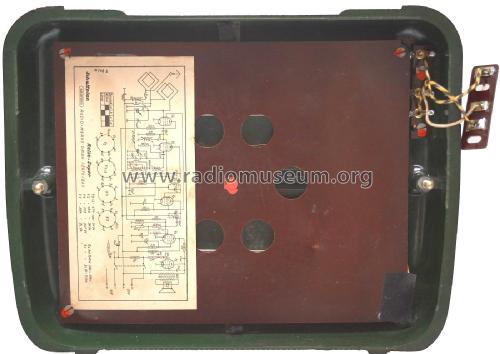

Reise-Super ; Grundig Radio- (ID = 2352983) Radio Reise-Super ; Grundig Radio- (ID = 2352984) Radio
Use red slider bar for more.
Reise-Super ; Grundig Radio- (ID = 2352974) Radio
Grundig Radio-: Reise-Super [Radio] ID = 2352974 1400x1127
Select picture or schematic to display from thumbnails on the right and click for download.
For model Reise-Super, Grundig (Radio-Vertrieb, RVF, Radiowerke):
aus eigener Sammlung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1T4 1R5 1T4 1S5 3Q4
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Reise-Super - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 200 x 100 mm / 10.2 x 7.9 x 3.9 inch
Notes Alternative Röhrenbestückung: DF91, DK91, DF91, DAF91, DL92.
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
External source of data Radiomagazin 1950

Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
