Reise-Super "Boy"

Reise-Super 'Boy' ; Grundig Radio- (ID = 438832) Radio Reise-Super 'Boy' ; Grundig Radio- (ID = 438833) Radio
Reise-Super 'Boy' ; Grundig Radio- (ID = 456089) Radio Reise-Super 'Boy' ; Grundig Radio- (ID = 456090) Radio

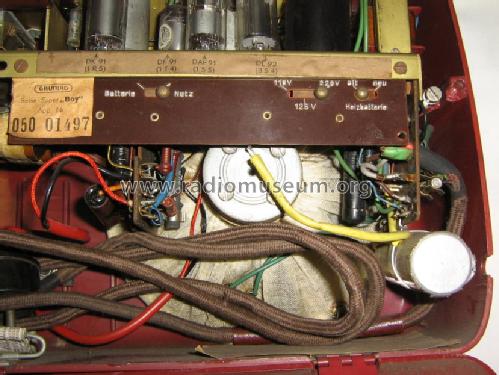

Reise-Super 'Boy' ; Grundig Radio- (ID = 456091) Radio Reise-Super 'Boy' ; Grundig Radio- (ID = 456092) Radio
Use red slider bar for more.
Reise-Super 'Boy' ; Grundig Radio- (ID = 438832) Radio
Grundig Radio-: Reise-Super "Boy" [Radio] ID = 438832 850x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model Reise-Super 'Boy', Grundig (Radio-Vertrieb, RVF, Radiowerke):
Skala einzeilig mit Beschriftung 55 bis 160.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes DK91 or 1R5 DF91 or 1T4 DAF91 or 1S5 DL92 or 3S4
Semiconductors (the count is only for transistors) 4: 220E60
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 220 / 9 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Reise-Super "Boy" - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 268 x 217 x 115 mm / 10.6 x 8.5 x 4.5 inch
Notes

Ähnlich Boy I 196 B-GW aber Skala nur mit Zahlen.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
