• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1953/1954

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 71147

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF40 ECC81 EL42 EL42 EM71

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

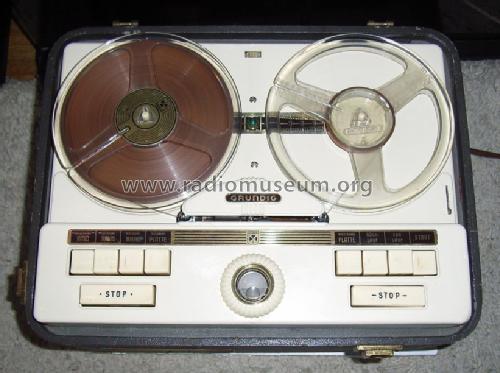

• Model: Reporter 700L [Export] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 8 x 12 inch / 406 x 203 x 305 mm

• Notes
• Export-Ausführung. Alle Anzeigen in englisch.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 80.00 £

• External source of data
• orginal bedienungsanleitung in englischer sprache

• Source of data
• -- Original prospect or advert
