Grundig Radio-: RF100 [Radio] ID = 650746 834x532

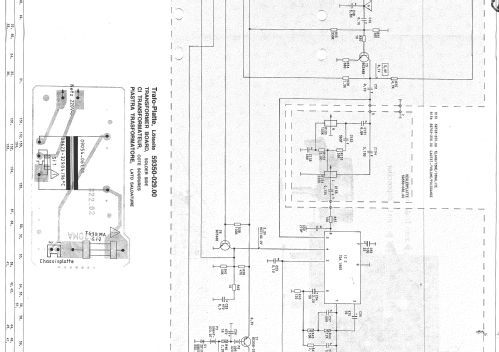

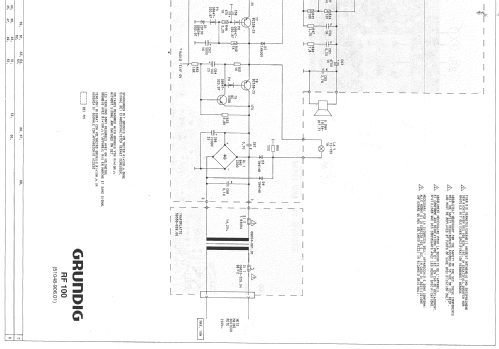

Select picture or schematic to display from thumbnails on the right and click for download.
For model RF100, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF240 2SK193 2SK193 BF240 BC548 BC548 BC338 BC338 BC558 TDA1220 TDA1905
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (4 W max.)
from Radiomuseum.org Model: RF100 - Grundig Radio-Vertrieb, RVF,
Dimensions (WHD) 380 x 230 x 120 mm / 15 x 9.1 x 4.7 inch
Notes

UKW-Vorstufe mit BF240,
UKW-Mischstufe und Oszillator mit je 2SK193F,
FM ZF-Stufe mit BF240
AM-Mischer + AM/FM ZF-Teil mit TDA1220A,
NF-Zwischenverstärker mit BC548B,
Steuerung Muting mit BC548B
NF-Endstufe mit TDA1905,
Einschalter und Stabilisierung mit 2 x BC338-25 + BC558B

Source of data -- Original-techn. papers.

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
