RF110a GB

RF110a GB; Grundig Radio- (ID = 2029076) Radio RF110a GB; Grundig Radio- (ID = 2029077) Radio
RF110a GB; Grundig Radio- (ID = 2029078) Radio RF110a GB; Grundig Radio- (ID = 2029079) Radio
Use red slider bar for more.
RF110a GB; Grundig Radio- (ID = 2029076) Radio

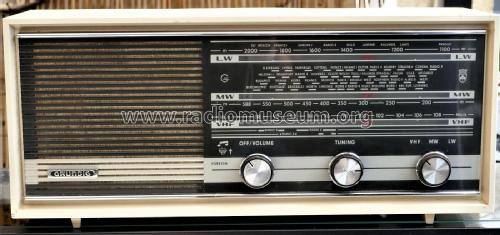

Grundig Radio-: RF110a GB [Radio] ID = 2029076 1134x798
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF110a GB, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Source: ebay.co.uk, #322169797222

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: RF110a GB - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 170 x 130 mm / 15.4 x 6.7 x 5.1 inch
Notes

Grundig RF110a GB ist ein Exportmodell für Grossbritannien.

Siehe auch das inländische Modell RF110a mit anderer Skalenbeschriftung.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
