RF35A

RF35A; Grundig Radio- (ID = 661094) Radio

RF35A; Grundig Radio- (ID = 661093) Radio

RF35A; Grundig Radio- (ID = 656547) Radio

RF35A; Grundig Radio- (ID = 656548) Radio
RF35A; Grundig Radio- (ID = 656101) Radio RF35A; Grundig Radio- (ID = 656105) Radio
RF35A; Grundig Radio- (ID = 656102) Radio RF35A; Grundig Radio- (ID = 656103) Radio
RF35A; Grundig Radio- (ID = 656104) Radio RF35A; Grundig Radio- (ID = 1966987) Radio
RF35A; Grundig Radio- (ID = 1966988) Radio RF35A; Grundig Radio- (ID = 1966989) Radio
RF35A; Grundig Radio- (ID = 1966990) Radio RF35A; Grundig Radio- (ID = 1966991) Radio
Use red slider bar for more.

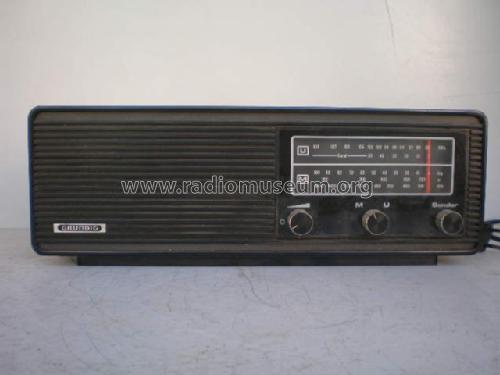

RF35A; Grundig Radio- (ID = 656101) Radio
Grundig Radio-: RF35A [Radio] ID = 656101 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF35A, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF235 BF235 BF233 BF233 BF233 TBA120 SN76001
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: RF35A - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 359 x 127 x 120 mm / 14.1 x 5 x 4.7 inch
Notes .
Source of data - - Data from my own collection

Model page created by Fabio Masetti. See "Data change" for further contributors.
