RF425

RF425; Grundig Radio- (ID = 266755) Radio

RF425; Grundig Radio- (ID = 266757) Radio

RF425; Grundig Radio- (ID = 266758) Radio

RF425; Grundig Radio- (ID = 422233) Radio

RF425; Grundig Radio- (ID = 422234) Radio

RF425; Grundig Radio- (ID = 422235) Radio

RF425; Grundig Radio- (ID = 422236) Radio

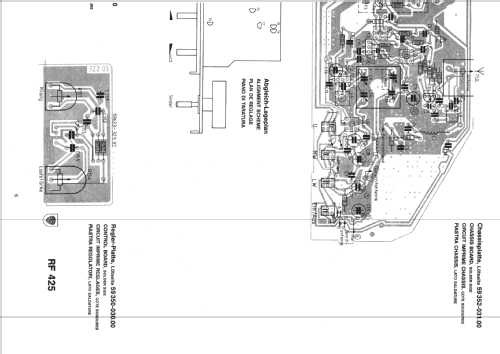

RF425; Grundig Radio- (ID = 422237) Radio
RF425; Grundig Radio- (ID = 1761124) Radio RF425; Grundig Radio- (ID = 1761121) Radio

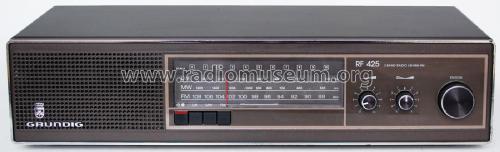

RF425; Grundig Radio- (ID = 1761125) Radio RF425; Grundig Radio- (ID = 1761126) Radio
RF425; Grundig Radio- (ID = 1761127) Radio RF425; Grundig Radio- (ID = 2208839) Radio
RF425; Grundig Radio- (ID = 2208841) Radio RF425; Grundig Radio- (ID = 2208855) Radio
RF425; Grundig Radio- (ID = 2208848) Radio RF425; Grundig Radio- (ID = 251094) Radio
Use red slider bar for more.

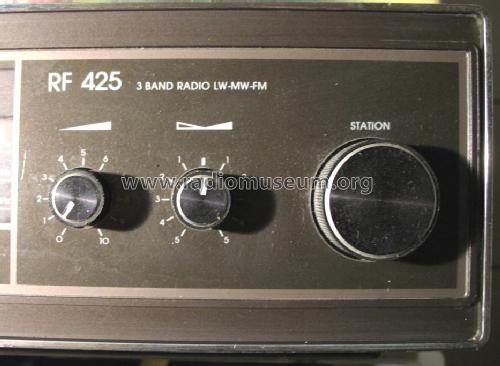

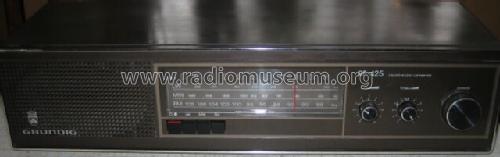

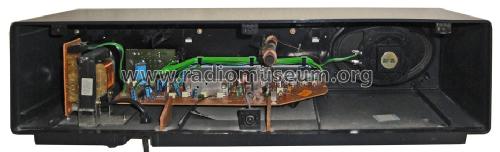

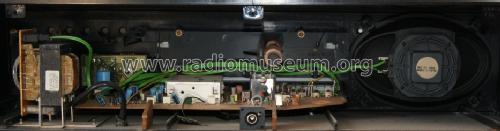

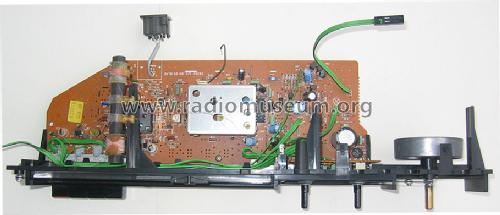

RF425; Grundig Radio- (ID = 1761124) Radio
Grundig Radio-: RF425 [Radio] ID = 1761124 1400x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF425, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BF240 2SK193 2SK193 BF240 BC548 BC548 BC338 BC338 BC558 ZD10 TDA1220 TDA1905 B40C500
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

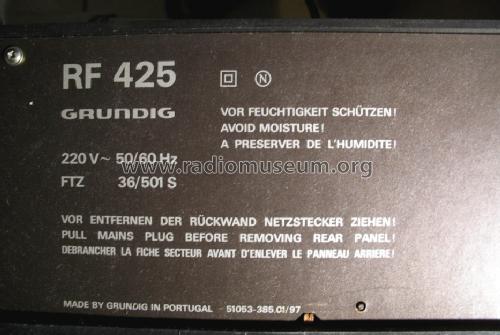

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10 cm = 3.9 inch
Power out 7 W (unknown quality)
from Radiomuseum.org Model: RF425 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 130 x 160 mm / 20.5 x 5.1 x 6.3 inch
Notes In Portugal hergestellt. 2 IC, TDA1220A und TDA1905.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data - - Data from my own collection
Mentioned in - - Manufacturers Literature (Grundig Revue '85, Produkt-Info)
Literature/Schematics (1) -- Original-techn. papers. (Service Manual 7/84)

Model page created by Jochen Amend. See "Data change" for further contributors.
