RF45

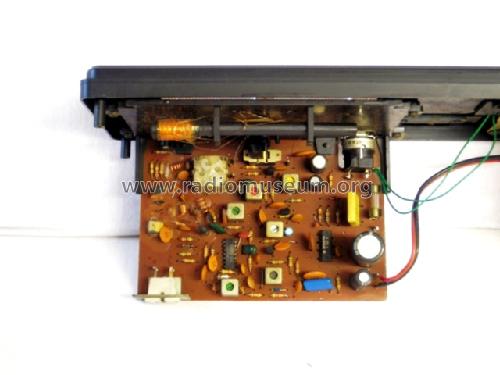

RF45; Grundig Radio- (ID = 1310888) Radio RF45; Grundig Radio- (ID = 1310889) Radio
RF45; Grundig Radio- (ID = 1310890) Radio
Use red slider bar for more.
RF45; Grundig Radio- (ID = 1310888) Radio
Grundig Radio-: RF45 [Radio] ID = 1310888 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF45, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common)
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RF45 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 130 x 125 mm / 13.8 x 5.1 x 4.9 inch

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
