RF550 Ch= RC200

RF550 Ch= RC200; Grundig Radio- (ID = 486940) Radio

RF550 Ch= RC200; Grundig Radio- (ID = 486941) Radio
RF550 Ch= RC200; Grundig Radio- (ID = 2429216) Radio RF550 Ch= RC200; Grundig Radio- (ID = 2429221) Radio
RF550 Ch= RC200; Grundig Radio- (ID = 2429219) Radio RF550 Ch= RC200; Grundig Radio- (ID = 2429231) Radio
RF550 Ch= RC200; Grundig Radio- (ID = 2429224) Radio RF550 Ch= RC200; Grundig Radio- (ID = 2429228) Radio
RF550 Ch= RC200; Grundig Radio- (ID = 2429226) Radio RF550 Ch= RC200; Grundig Radio- (ID = 486943) Radio
Use red slider bar for more.

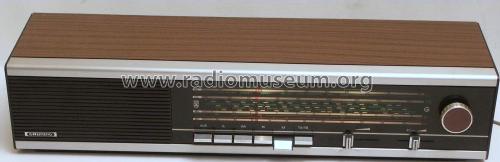

RF550 Ch= RC200; Grundig Radio- (ID = 2429216) Radio
Grundig Radio-: RF550 Ch= RC200 [Radio] ID = 2429216 997x324
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF550 Ch= RC200, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: RF550 Ch= RC200 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes 1 IC: TBA480
3 Ausführungen: holz-hell, palisander oder weiß.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
