RF630; Grundig Radio- (ID = 660056) Radio
Grundig Radio-: RF630 [Radio] ID = 660056 930x400

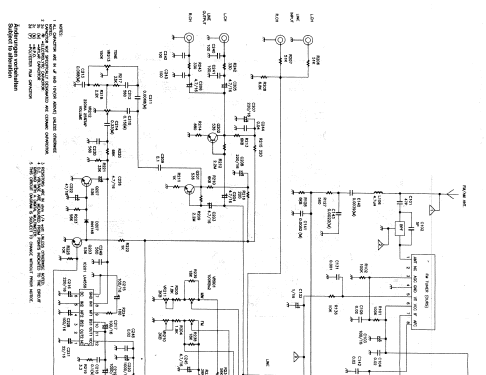

Select picture or schematic to display from thumbnails on the right and click for download.
For model RF630, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sammlung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1994 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: 2SC536 2SC9014 2SC930 S8050 CS9015 LA1830 LA4558
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: RF630 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)

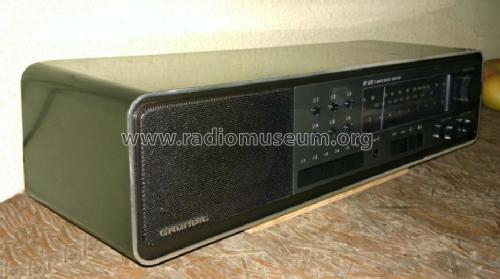

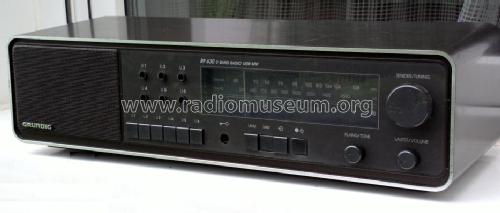

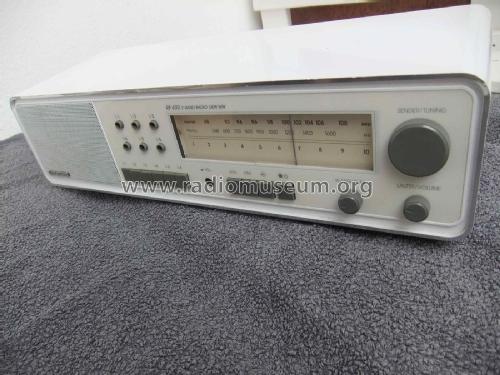

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 125 x 160 mm / 18.9 x 4.9 x 6.3 inch
Notes

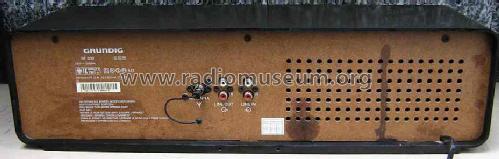

Der Empfänger RF630 hat 6 Speicherplätze für UKW. Anschlüsse line in und line out über Cinch- Buchsen.

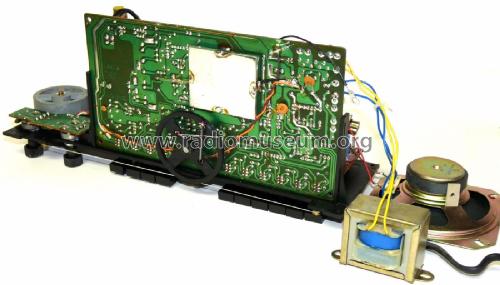

Die Platine wird auch im Heinzelmann "Limited Edition" Jubiläumsgerät 1995 verwendet.

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
