RF810

RF810; Grundig Radio- (ID = 82696) Radio

RF810; Grundig Radio- (ID = 82697) Radio
RF810; Grundig Radio- (ID = 1066426) Radio RF810; Grundig Radio- (ID = 1066427) Radio
RF810; Grundig Radio- (ID = 1066428) Radio RF810; Grundig Radio- (ID = 227664) Radio
Use red slider bar for more.
RF810; Grundig Radio- (ID = 1066426) Radio
Grundig Radio-: RF810 [Radio] ID = 1066426 700x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model RF810, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980/1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460 kHz

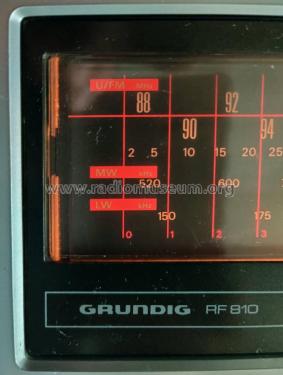

Wave bands Broadcast, Long Wave and FM or UHF.
Details

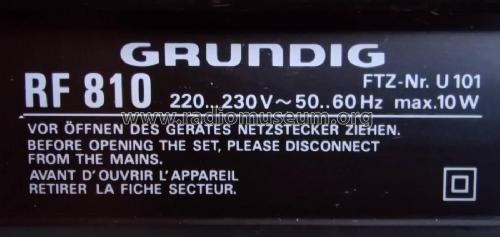

Power type and voltage Alternating Current supply (AC) / 220/230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: RF810 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)

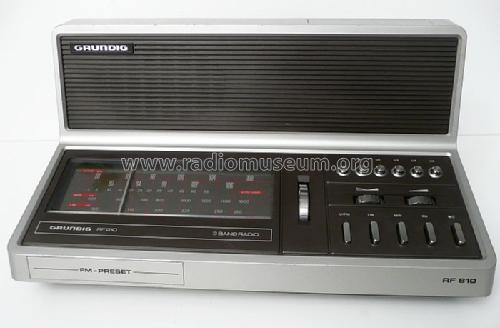

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 350 x 180 x 210 mm / 13.8 x 7.1 x 8.3 inch

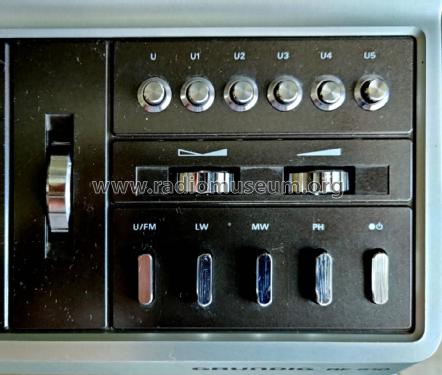

Notes 2 IC, AN7218, LA4112. 5 UKW-Fixtasten
Net weight (2.2 lb = 1 kg) 2.250 kg / 4 lb 15.3 oz (4.956 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
