Rom T463 Text Ch= CUC 3410
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1988 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 178575
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

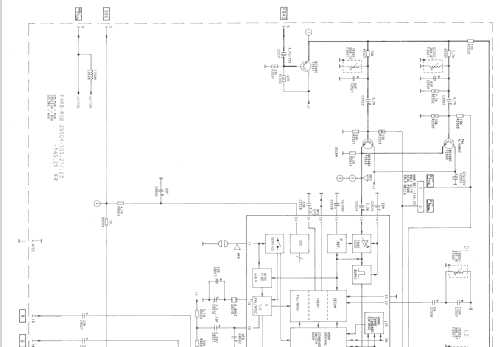

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A66EAK01X01
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Rom T463 Text Ch= CUC 3410 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Notes
- Grundig Color Gerät Rom T 463 Text; VHF/UHF Kabel Tuner und Senderkennung.
- Literature/Schematics (1)

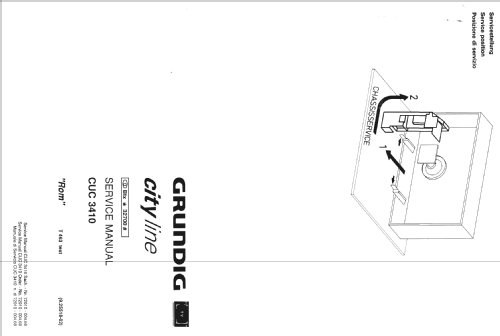

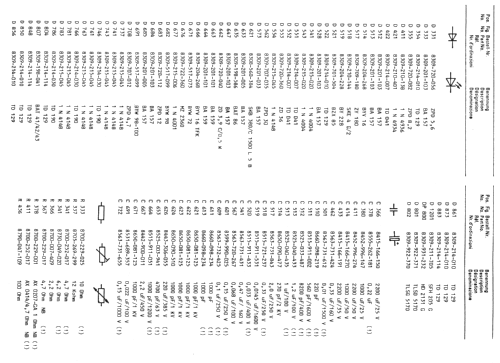

- Original Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
