• Year
  • 1982–1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88612
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

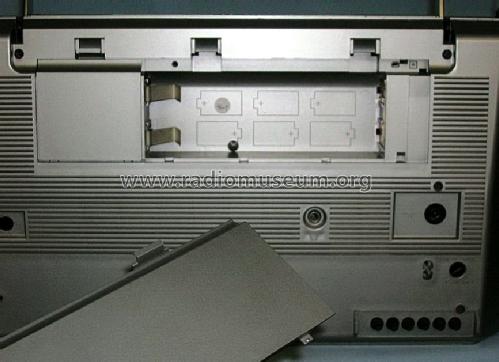

  • Line / Batteries (any type) / 110; 115; 220; 230; (6 × 1,5) Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

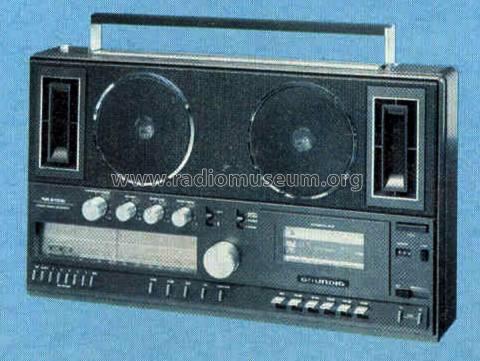

  • Model: RR3000 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 480 x 310 x 110 mm / 18.9 x 12.2 x 4.3 inch
  • Notes
  • 6 UKW-Speichertasten; umschaltbar: Mono, Stereo, Superstereo.
  • Net weight (2.2 lb = 1 kg)
  • 5.1 kg / 11 lb 3.7 oz (11.233 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in

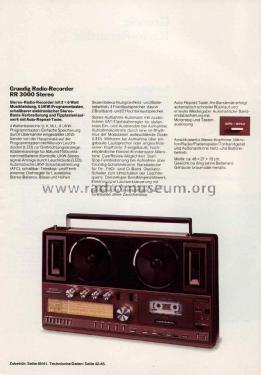

  • - - Manufacturers Literature (Grundig Katalog - 82/83 - Radios&Recorder - Seiten 8 und 42)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
