• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1983–1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127223

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

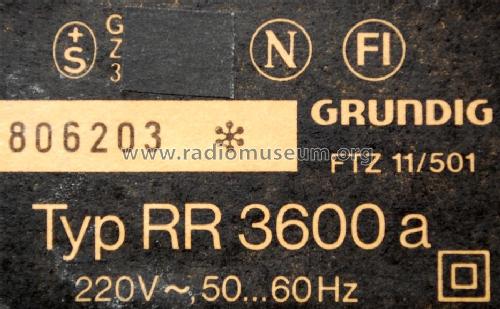

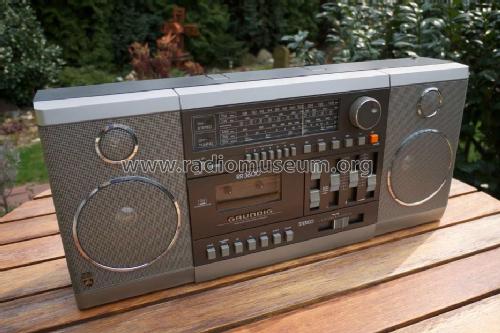

• Model: RR3600 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 570 x 250 x 140 mm / 22.4 x 9.8 x 5.5 inch

• Notes
• Stereo - Kassettenrecorder, Aufnahme auf Fe- und Cr- Cassetten, spielt auch Me- Cassetten, dreistelliges Bandlängenzählwerk, Aufnahme - Automatik, 6 UKW - Programmtasten. Frequenzbereich 40-14000Hz, getrennte Bass- und Höhenregler, 2 eingebaute Mikrofone. Anschlüsse: 3,5mm Kopfhörer,TA/TB. Gehäuseausführung: Metallic

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
