• Year
  • 1982/1983
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74610
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

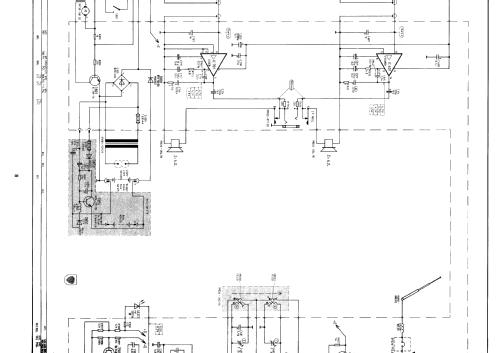

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220-230 / 9 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

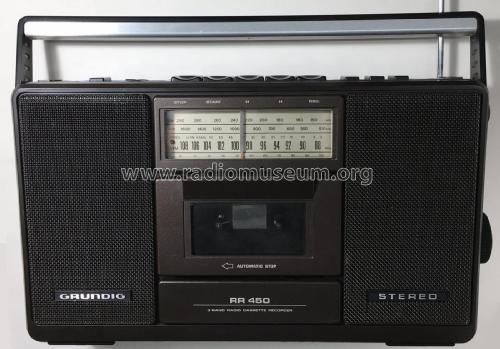

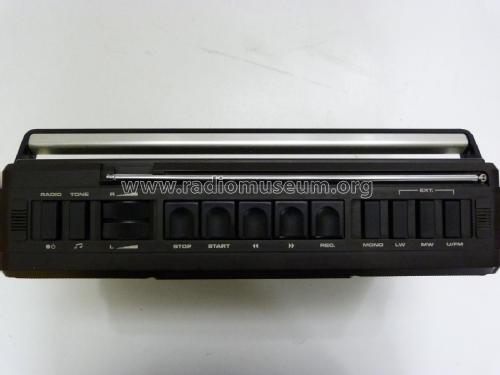

  • Model: RR450 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 330 x 200 x 80 mm / 13 x 7.9 x 3.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Price in first year of sale
  • 382.00 HFL
  • Source of data

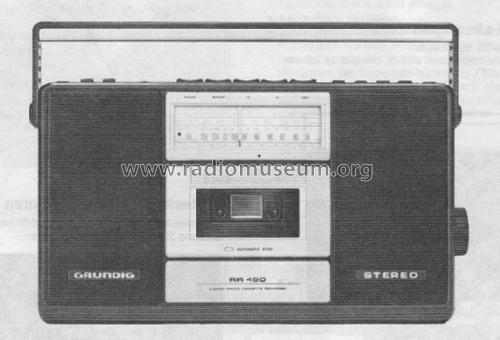

  • -- Original prospect or advert
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Grundig Radio-: RR450

Threads: 1 | Posts: 1

Wenn man das Gerät ablösen will, muß man das Kassettendeckel vorziehen und dann zwei Schrauben dahinter ablösen.

Ottmar Lauth, 05.Sep.20
