• Year
  • 1981–1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 125029
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage and/or dry batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org

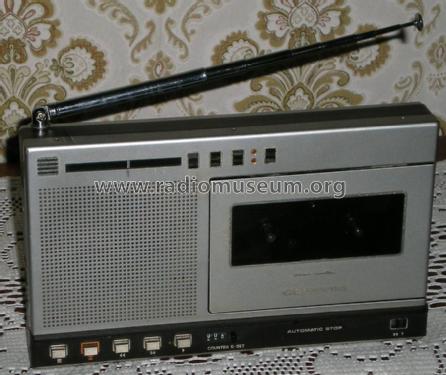

  • Model: RR60 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 190 x 120 x 30 mm / 7.5 x 4.7 x 1.2 inch
  • Notes
  • Mono-Radio-Recorder mit 2 Bandgeschwindigkeiten (4,76 cm/s und 2,38 cm/s). Eingebautes Electret-Kondensator-Mikrofon. Anschlüsse für Kopfhöhrer und externe Stromversorgung (220/230 und 120/127 V).
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Price in first year of sale
  • 550.00 HFL
  • Source of data

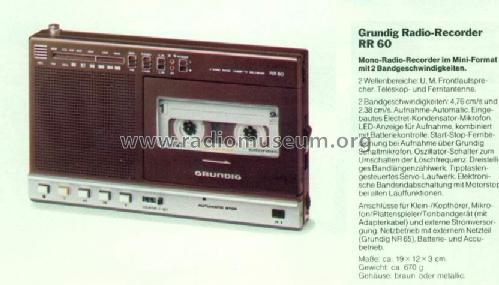

  • -- Original prospect or advert
  • Mentioned in
  • Grundig Fachhandelskatalog 81/82
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
