• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1981/1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137255

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

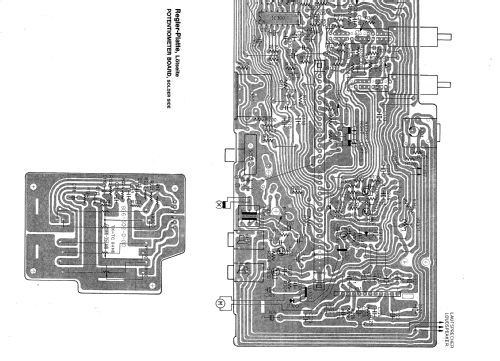

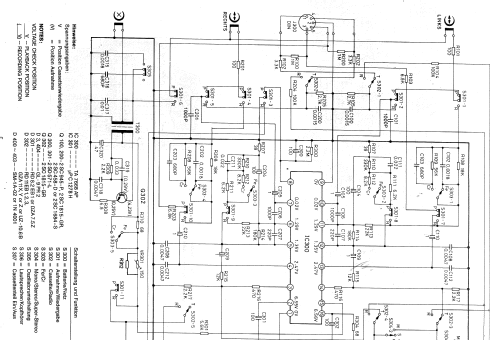

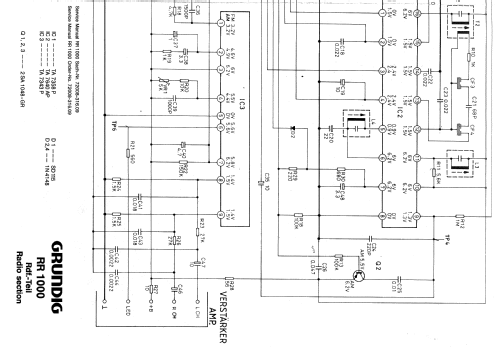

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 240 / 6 × 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RR 1000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 460 x 230 x 100 mm / 18.1 x 9.1 x 3.9 inch

• Notes
• Der Radiorecorder RR1000 hat Anschlussbuchsen für Kopfhörer, Außenlautsprecher und eine DIN- Buchse.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Grundig Fachhandelskatalog 81/82

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
