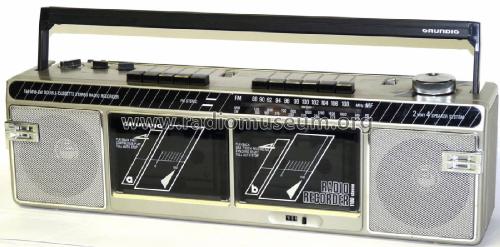

RR1100; Grundig Radio- (ID = 1748911) Radio
Grundig Radio-: RR1100 [Radio] ID = 1748911 1400x743
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR1100, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker 4 Loudspeakers / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: RR1100 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 470 x 135 x 110 mm / 18.5 x 5.3 x 4.3 inch
Notes 2 Ausführungen: schwarz und rot
Doppel Cassetten Deck
6 IC`s: FA7358P,TA7787P,TA7343AP, µPC1228HA, TA7668BP, BA5406.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

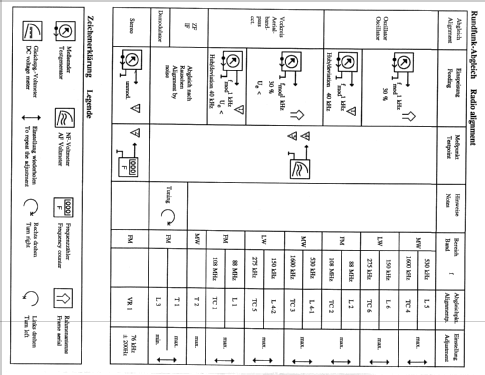

Mentioned in Original Grundig Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
