RTV1020 HiFi

RTV1020 HiFi; Grundig Radio- (ID = 150356) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150357) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150358) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150359) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150360) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150361) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150362) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150363) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150364) Radio

RTV1020 HiFi; Grundig Radio- (ID = 150365) Radio
RTV1020 HiFi; Grundig Radio- (ID = 523869) Radio RTV1020 HiFi; Grundig Radio- (ID = 559978) Radio
RTV1020 HiFi; Grundig Radio- (ID = 479975) Radio RTV1020 HiFi; Grundig Radio- (ID = 757698) Radio
RTV1020 HiFi; Grundig Radio- (ID = 334007) Radio RTV1020 HiFi; Grundig Radio- (ID = 334008) Radio
RTV1020 HiFi; Grundig Radio- (ID = 298944) Radio RTV1020 HiFi; Grundig Radio- (ID = 559977) Radio
RTV1020 HiFi; Grundig Radio- (ID = 565961) Radio RTV1020 HiFi; Grundig Radio- (ID = 592429) Radio
Use red slider bar for more.
RTV1020 HiFi; Grundig Radio- (ID = 523869) Radio

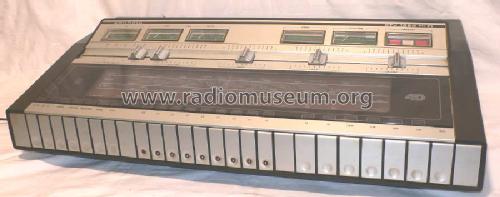

Grundig Radio-: RTV1020 HiFi [Radio] ID = 523869 778x473

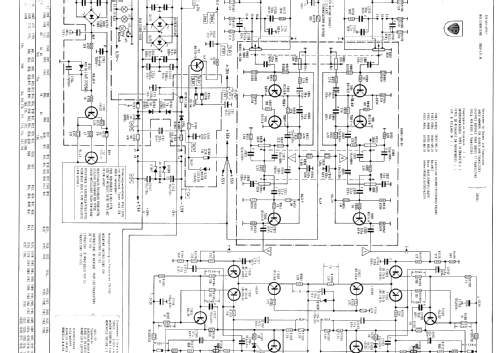

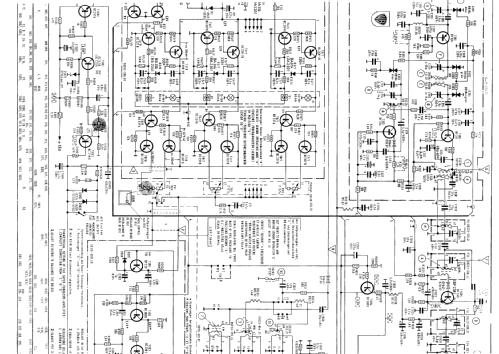

Select picture or schematic to display from thumbnails on the right and click for download.
For model RTV1020 HiFi, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Thanks for Mr.Rosta György, Hungary.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 132:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     17 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RTV1020 HiFi - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 150 x 330 mm / 24 x 5.9 x 13 inch
Notes HiFi-Stereo-Steuergerät. NF-Verstärker mit 4 Endstufen je 30 W (Sinus) bzw. 2× 50 W (Sinus)
2 Ausführungen: schwarz und weiß.
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 1'300.00 DM
Collectors' prices
External source of data Erb
Source of data Katalog RFP 1973
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5983 models, 5192 with images and 4031 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Grundig Radio-: RTV1020 HiFi
Threads: 1 | Posts: 3
Hits: 688     Replies: 2
grundig: Mini lamps for Grundig RTV1020
Michael Waitz
21.May.17
  1

Hello,

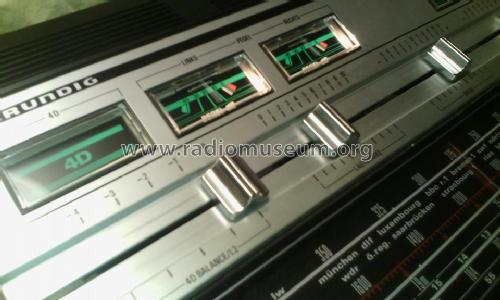

I have acquired a Grundig RTV1020 with a burnt Tunoscope lamp, and two missing lamps in the Stereo and 4D gauges.

I think from the schematic (and the small amount of print legible on the burnt bulb) that I need an R5 OSRAM 2306 --- 6-7v 30mA lamp. Can anyone verify this, and suggest a good source?

Thank you

Wolfgang Bauer
22.May.17
  2

Hello,

I think you need bulbs with 7V / 80mA, not 30mA.

Look there ==> 7V / 80mA.

Regards WB.

Michael Waitz
22.May.17
  3

Vielen Dank, Wolfgang. These are much less expensive than the 30mA as well.

Best,

Mike
