• Year
  • 1974–1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29359
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

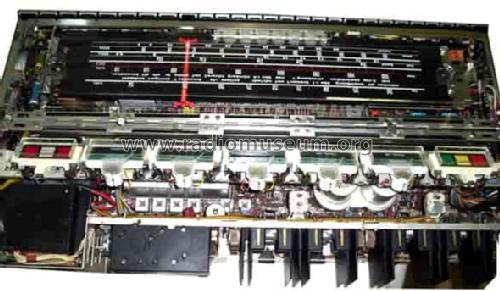

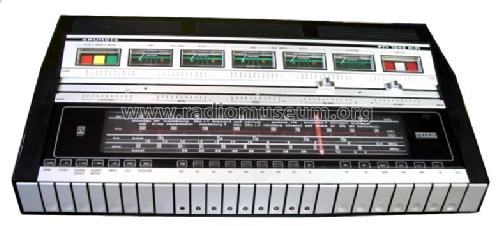

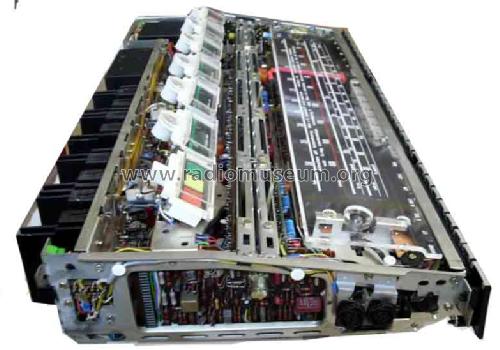

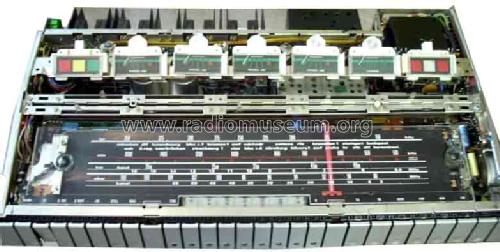

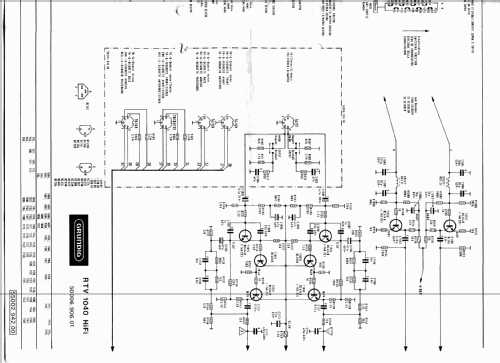

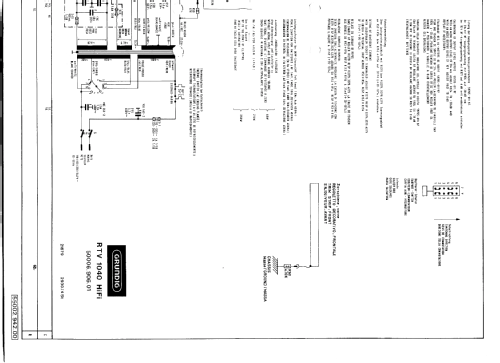

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 185
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     17 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt

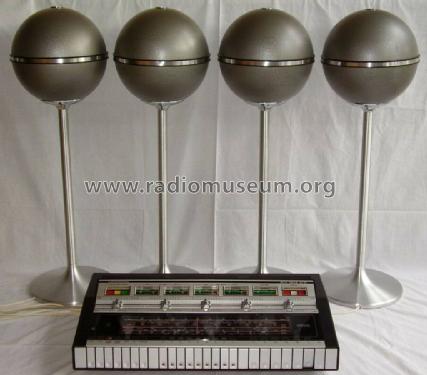

  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

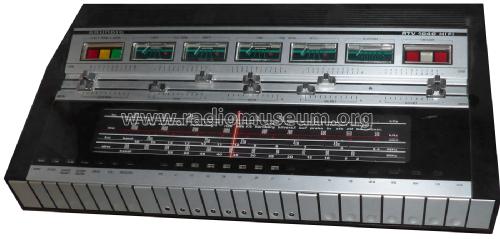

  • Model: RTV1040 HiFi - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 610 x 150 x 330 mm / 24 x 5.9 x 13 inch
  • Notes
  • HiFi-Steuergerät für Stereo und Quadro;
    NF-Ausgangsleistung: 4× 25 W (Sinus) bzw. 2× 30 W (Sinus); eingebauter SQ-Decoder.
    Gehäusefarbe weiß oder schwarz.
  • Net weight (2.2 lb = 1 kg)
  • 15.8 kg / 34 lb 12.8 oz (34.802 lb)
  • External source of data
  • Erb

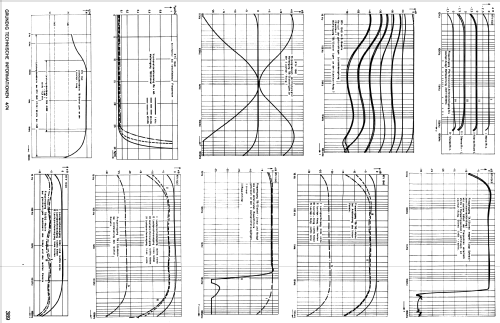

  • Literature/Schematics (1)
  • -- Original-techn. papers.
