• Year
  • 1969–1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27722
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

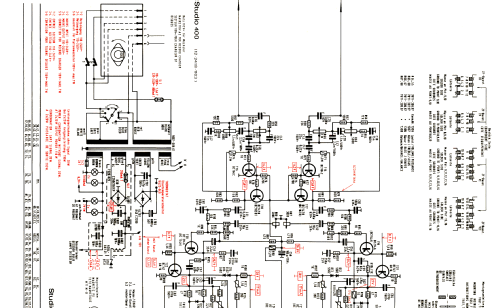

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 43
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (60 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org

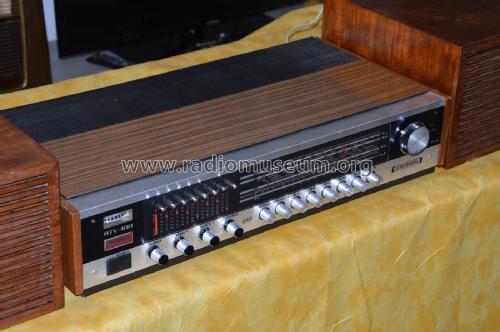

  • Model: RTV400 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 560 x 120 x 280 mm / 22 x 4.7 x 11 inch
  • Notes
  • Grundig HiFi-Stereo-Steuergerät RTV400.
    NF-Verstärker mit 2 Endstufen je 20 W (Sinus).
    Gehäuse: Nussbaum, natur mattiert oder Palisander mattiert.
  • Price in first year of sale
  • 898.00 DM
  • External source of data
  • erb
  • Mentioned in

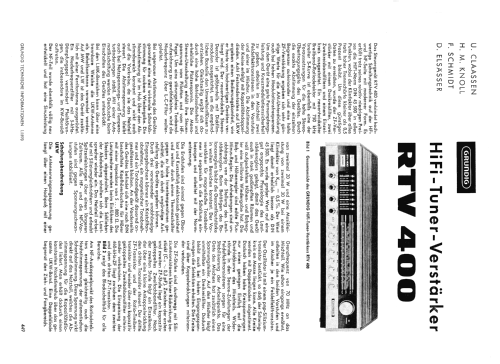

  • - - Manufacturers Literature (Grundig Technische Informationen 1/1970)
