RTV800 HiFi

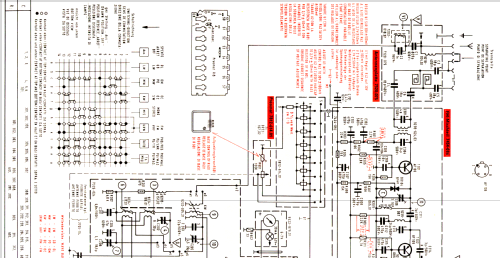

RTV800 HiFi; Grundig Radio- (ID = 418237) Radio

RTV800 HiFi; Grundig Radio- (ID = 418238) Radio

RTV800 HiFi; Grundig Radio- (ID = 418239) Radio

RTV800 HiFi; Grundig Radio- (ID = 418240) Radio

RTV800 HiFi; Grundig Radio- (ID = 418241) Radio

RTV800 HiFi; Grundig Radio- (ID = 418243) Radio

RTV800 HiFi; Grundig Radio- (ID = 418244) Radio

RTV800 HiFi; Grundig Radio- (ID = 418246) Radio

RTV800 HiFi; Grundig Radio- (ID = 418247) Radio

RTV800 HiFi; Grundig Radio- (ID = 418248) Radio
RTV800 HiFi; Grundig Radio- (ID = 1467590) Radio RTV800 HiFi; Grundig Radio- (ID = 486845) Radio
RTV800 HiFi; Grundig Radio- (ID = 491888) Radio RTV800 HiFi; Grundig Radio- (ID = 1467591) Radio
RTV800 HiFi; Grundig Radio- (ID = 1467593) Radio RTV800 HiFi; Grundig Radio- (ID = 1467594) Radio
RTV800 HiFi; Grundig Radio- (ID = 1467595) Radio RTV800 HiFi; Grundig Radio- (ID = 1467596) Radio
RTV800 HiFi; Grundig Radio- (ID = 1547188) Radio RTV800 HiFi; Grundig Radio- (ID = 2132746) Radio
Use red slider bar for more.
RTV800 HiFi; Grundig Radio- (ID = 1467590) Radio
Grundig Radio-: RTV800 HiFi [Radio] ID = 1467590 933x302
Select picture or schematic to display from thumbnails on the right and click for download.
For model RTV800 HiFi, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RTV800 HiFi - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 590 x 130 x 290 mm / 23.2 x 5.1 x 11.4 inch
Notes Grundig HiFi-Stereo-Steuergerät RTV800 HiFi.
NF-Verstärker mit 2 Endstufen je 12,5 W (Sinus).
Gehäuse: Nussbaum oder Palisander.
External source of data Erb
Source of data Handbuch VDRG 1971/1972
