Signal 300K

Signal 300K; Grundig Radio- (ID = 63504) Radio

Signal 300K; Grundig Radio- (ID = 63505) Radio

Signal 300K; Grundig Radio- (ID = 63506) Radio

Signal 300K; Grundig Radio- (ID = 63507) Radio

Signal 300K; Grundig Radio- (ID = 63508) Radio
Signal 300K; Grundig Radio- (ID = 244944) Radio Signal 300K; Grundig Radio- (ID = 244945) Radio
Signal 300K; Grundig Radio- (ID = 94447) Radio Signal 300K; Grundig Radio- (ID = 1601609) Radio
Signal 300K; Grundig Radio- (ID = 1601610) Radio Signal 300K; Grundig Radio- (ID = 1601611) Radio
Signal 300K; Grundig Radio- (ID = 1601612) Radio Signal 300K; Grundig Radio- (ID = 1601613) Radio
Signal 300K; Grundig Radio- (ID = 1601614) Radio Signal 300K; Grundig Radio- (ID = 1601615) Radio
Use red slider bar for more.

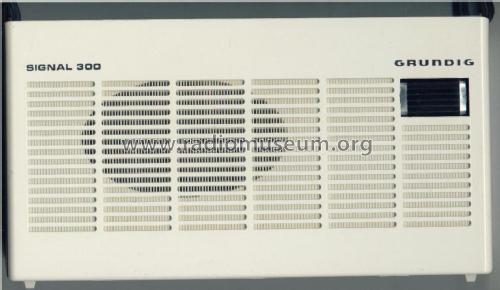

Signal 300K; Grundig Radio- (ID = 244944) Radio
Grundig Radio-: Signal 300K [Radio] ID = 244944 933x542
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal 300K, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Signal 300K - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 252 x 150 x 50 mm / 9.9 x 5.9 x 2 inch
Notes

NF-Ausgangsleistung bei Netzbetrieb = 1 W.

Speaker: Grundig 7063-003.21; 5 Ohm / 0,8 W.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in Handbuch VDRG 1974/1975 (und 1975/76)
