Signal 500

Signal 500; Grundig Radio- (ID = 74858) Radio

Signal 500; Grundig Radio- (ID = 393172) Radio

Signal 500; Grundig Radio- (ID = 393173) Radio

Signal 500; Grundig Radio- (ID = 393174) Radio

Signal 500; Grundig Radio- (ID = 393178) Radio
Signal 500; Grundig Radio- (ID = 992533) Radio Signal 500; Grundig Radio- (ID = 94448) Radio
Signal 500; Grundig Radio- (ID = 563845) Radio Signal 500; Grundig Radio- (ID = 563843) Radio
Signal 500; Grundig Radio- (ID = 563844) Radio Signal 500; Grundig Radio- (ID = 563847) Radio
Signal 500; Grundig Radio- (ID = 563848) Radio Signal 500; Grundig Radio- (ID = 563850) Radio
Signal 500; Grundig Radio- (ID = 565508) Radio Signal 500; Grundig Radio- (ID = 992531) Radio
Use red slider bar for more.
Signal 500; Grundig Radio- (ID = 992533) Radio

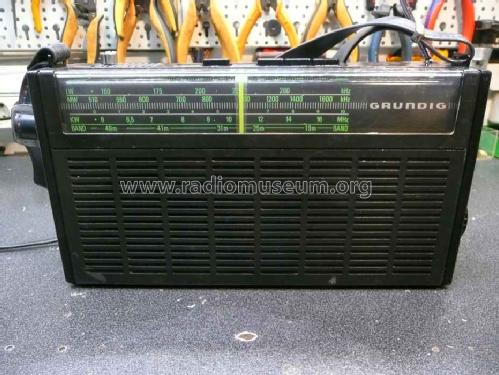

Grundig Radio-: Signal 500 [Radio] ID = 992533 930x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Signal 500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 2×4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Signal 500 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 170 x 60 mm / 11.8 x 6.7 x 2.4 inch
Notes NF-Ausgangsleistung bei Netzbetrieb = 3 W.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in Handbuch VDRG 1974/1975 (und 1975/76)


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
