- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1997
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 295753
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

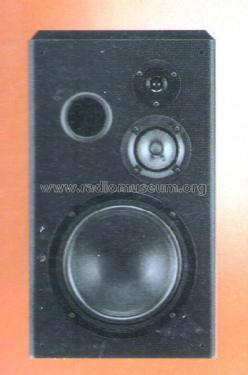

Photo Catalogo Grundig
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SLB 2 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 300 x 515 x 290 mm / 11.8 x 20.3 x 11.4 inch
- Notes
-
Column Bass Reflex 3 way system, nominal power 60 W, musical power 100 W, nominal impedance 4 ohms, 3 Speakers, frequency response 35 Hz-22 kHz, receiver frequency 1250/5000 Hz, liquid volume 26 liters.
- Net weight (2.2 lb = 1 kg)
- 18.5 kg / 40 lb 12 oz (40.749 lb)
- Mentioned in
- Catalogo Grundig 1997, Model Page 88
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
