Solo-Boy 500L

Solo-Boy 500L; Grundig Radio- (ID = 74876) Radio

Solo-Boy 500L; Grundig Radio- (ID = 1281967) Radio

Solo-Boy 500L; Grundig Radio- (ID = 1281968) Radio

Solo-Boy 500L; Grundig Radio- (ID = 1281970) Radio

Solo-Boy 500L; Grundig Radio- (ID = 1281969) Radio

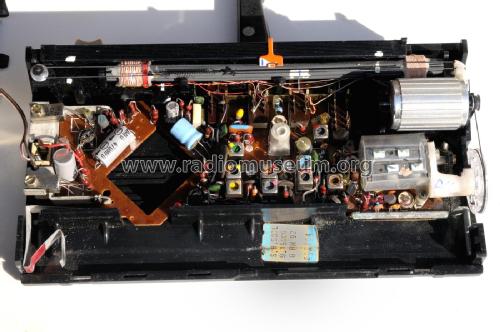

Solo-Boy 500L; Grundig Radio- (ID = 2158232) Radio Solo-Boy 500L; Grundig Radio- (ID = 2158233) Radio
Use red slider bar for more.

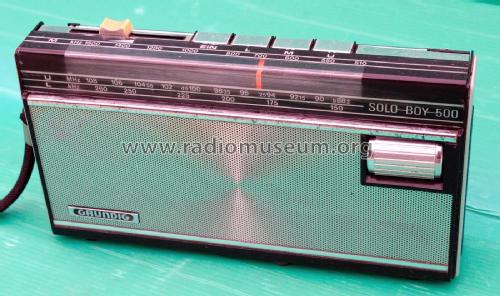

Solo-Boy 500L; Grundig Radio- (ID = 2158232) Radio
Grundig Radio-: Solo-Boy 500L [Radio] ID = 2158232 1400x830
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solo-Boy 500L, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF314 BF241 BF241 BF241 BF240 BC238 BC308 AC121 AC187 AC188 AA112 AA112 AA112 BZ102
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Solo-Boy 500L - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes UKW: 87,5 - 108 MHz
MW: 510 - 1620 kHz
LW: 145 - 260 kHz
Source of data -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
