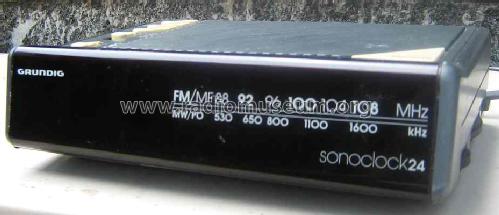

sonoclock (sono-clock) 24

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1983–1985
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157763
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: sonoclock 24 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 205 x 60 x 145 mm / 8.1 x 2.4 x 5.7 inch
  • Notes
  • Das Uhrenradio Sonoclock 24 ist mit 4 ICs aufgebaut, hat für UKW eine Wurfantenne und eine LED- Anzeige. Eine Pufferbatterie (9 Volt) überbrückt einen Netzausfall.
  • Net weight (2.2 lb = 1 kg)
  • 1.020 kg / 2 lb 3.9 oz (2.247 lb)
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
