For model sono-clock (sonoclock) 550a, Grundig (Radio-Vertrieb, RVF, Radiowerke):

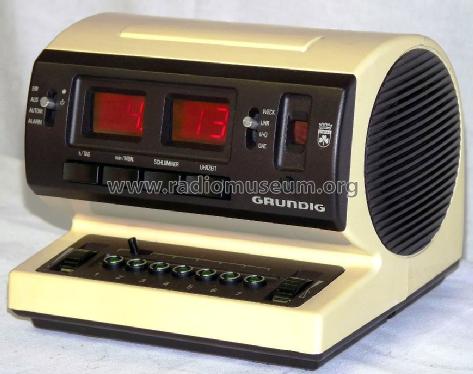

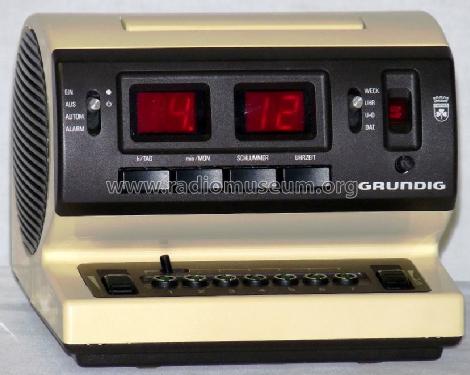

Grundig Sono-Clock 550a

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977/1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common)
Tuned circuits 9 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: sono-clock 550a - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 165 x 130 x 150 mm / 6.5 x 5.1 x 5.9 inch
Notes

Wecker-Radio mit Digital-Anzeige, 7 Vorwahl-Sensortasten. Empfänger: 5 ICs, 7 Dioden.

Made in Portugal

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
