• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127925

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

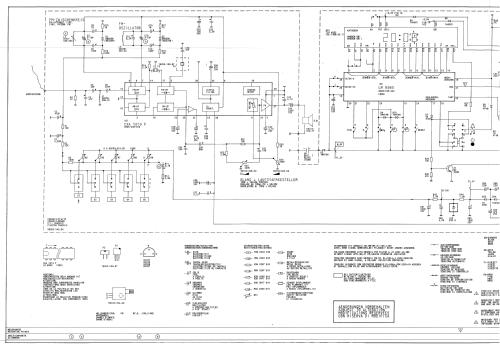

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• CXA1019S LM8560

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Line / Batteries (any type) / 220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 1 W (1.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: sonoclock 700 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 200 x 125 x 95 mm / 7.9 x 4.9 x 3.7 inch

• Notes
• .

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funkschau (25/1986, S. 80, 81 / Markt, Neuvorstellung)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
