sono-clock (sonoclock) 800

sono-clock 800; Grundig Radio- (ID = 639751) Radio

sono-clock 800; Grundig Radio- (ID = 639752) Radio

sono-clock 800; Grundig Radio- (ID = 642059) Radio

sono-clock 800; Grundig Radio- (ID = 642060) Radio

sono-clock 800; Grundig Radio- (ID = 642061) Radio

sono-clock 800; Grundig Radio- (ID = 642062) Radio

sono-clock 800; Grundig Radio- (ID = 642063) Radio

sono-clock 800; Grundig Radio- (ID = 1011081) Radio

sono-clock 800; Grundig Radio- (ID = 1011082) Radio

sono-clock 800; Grundig Radio- (ID = 1011083) Radio
sono-clock 800; Grundig Radio- (ID = 1951856) Radio sono-clock 800; Grundig Radio- (ID = 2253712) Radio
sono-clock 800; Grundig Radio- (ID = 2253713) Radio sono-clock 800; Grundig Radio- (ID = 2253714) Radio
sono-clock 800; Grundig Radio- (ID = 1011085) Radio sono-clock 800; Grundig Radio- (ID = 454789) Radio
sono-clock 800; Grundig Radio- (ID = 454788) Radio sono-clock 800; Grundig Radio- (ID = 454787) Radio
sono-clock 800; Grundig Radio- (ID = 459484) Radio sono-clock 800; Grundig Radio- (ID = 459486) Radio
Use red slider bar for more.

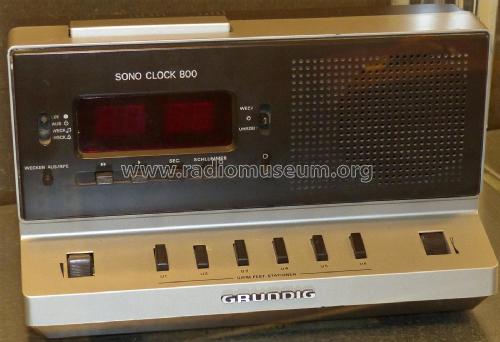

sono-clock 800; Grundig Radio- (ID = 1951856) Radio
Grundig Radio-: sono-clock 800 [Radio] ID = 1951856 1400x960

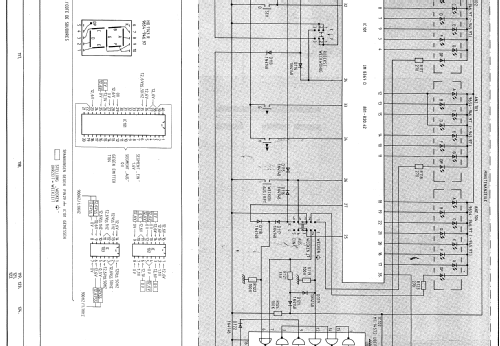

Select picture or schematic to display from thumbnails on the right and click for download.
For model sono-clock (sonoclock) 800, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Gerät steht im Rundfunkmuseum der Stadt Fürth.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1982–1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details Radio with other functions
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: sono-clock 800 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 240 x 145 x 120 mm / 9.4 x 5.7 x 4.7 inch
Notes

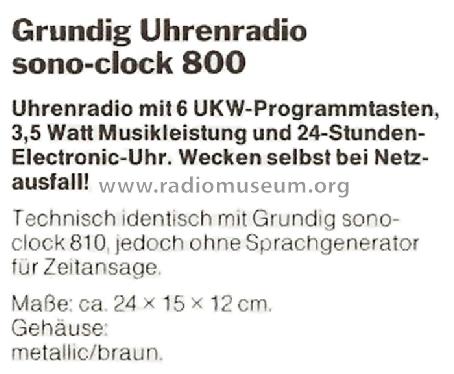

Grundig Sono-clock 800: SErvice-Anleitung von März 1982. Beworben auch 1985: 6 UKW Festsendertasten, Uhr mit LEDs, made in Portugal. zwei IC´s,

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
